Rubber lined butetrfly valve

  • Design standard: BS EN593
  • Face to face length: EN558-1/ISO5752 series 14 or Series 13
  • Size: DN150 - DN3600/6"-144"
  • Pressure rating: PN6- PN10-PN16-PN25-PN40

We're here to help:

Easy ways to get the answers you need.

share with :
  • Overview
  • Full Data
  • Certification
  • Inquiry

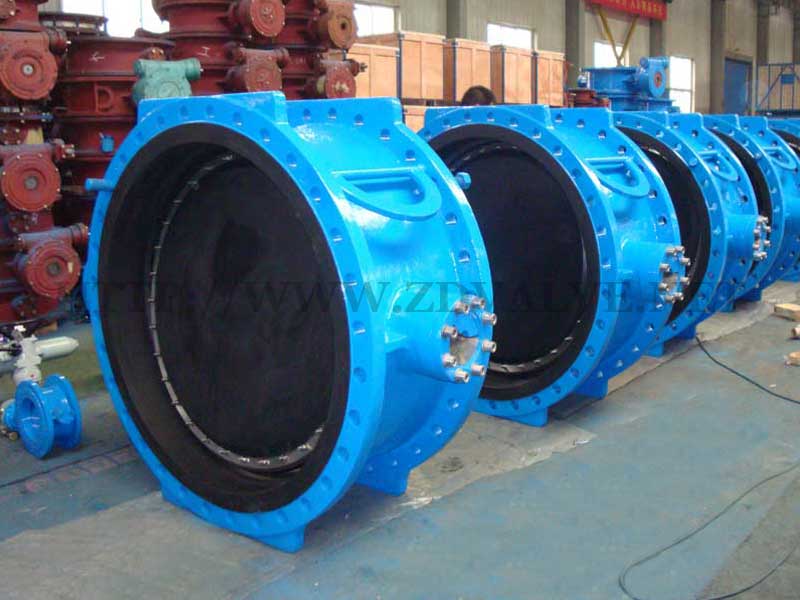

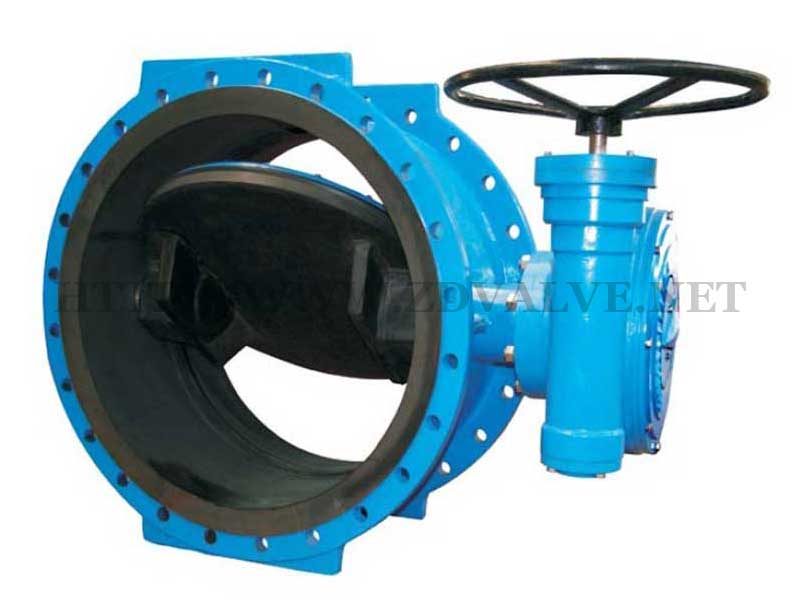

Dqj-41X rubber lined Butterfly Valve, double eccentric disc design, with EPDM ebonited lining, and is applied in the sewage industry, sea water treatment and desalinization project, and etc.
Design standard: BS EN593
Face to face length : EN558-1/ISO5752 series 14 (DIN3202 F4)/ ISO5752 series 13
Flange dimension and drill
: BS EN1092/BS4504 (DIN2501)
Size: DN150 - DN3600; 6"-144"
Pressure rating:PN6- PN10-PN16-PN25-PN40
Application: water, sewage, sea water desalinization etc.

Overview:
►1.Flange
Flange and drilling to EN1092-2, face to face as per ISO5752 series 14 or Series 13
►2.Disc

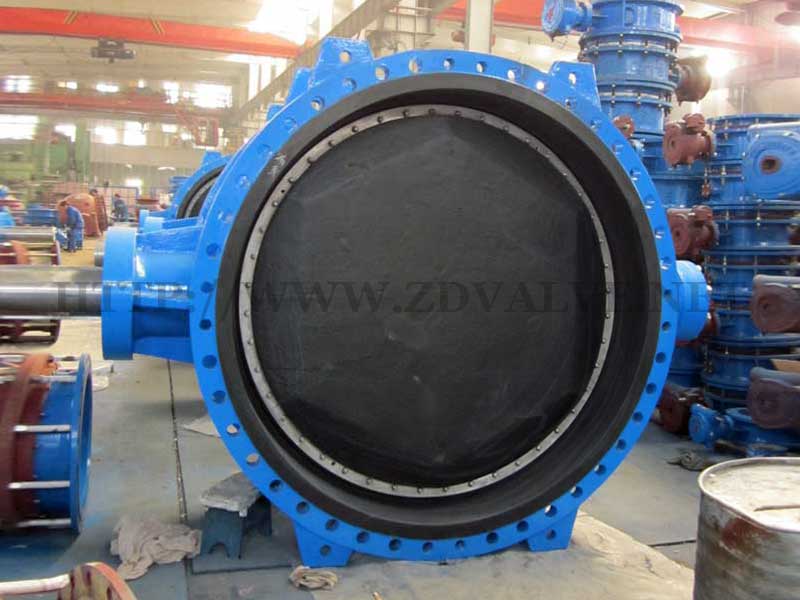

Disc is fully vulcanized with natural hard rubber, Streamlined low profile disc ensures the lower flow resistance.
►3. Disc seal ring,
L profiled disc seal ring fixed by retainer ensures the reliable sealing performance in both direction, which is also easy to be adjusted or replaced without any special tools.
►4.. Body
Body is fully vulcanized with natural hard rubber.
►5. Shaft seal ring
Multiple shaft O rings provide long life and reliable sealing performance, which is easy to be adjusted or replace.
►6. Shaft
Dry shaft design can prevent the corrosion from service medium
►7. Gear box
Low torque gearbox can be easily operated by hand wheel or connect with actuator
►8. Top flange
Gearbox is equipped with ISO 5210 flange connection with actuator, and F10 is standard specified.

Name

Material

Body

GJS500-7/ GJS400-15/ WCB+ rubber lining

Disc

GJS500-7/ GJS400-15/ WCB+ rubber lining

Shaft

SS420/SS431/Duplex 1.4462

Disc seal ring

EPDM

Retainer ring

Carbon steel +epoxy/ SS304/ SS316

Shaft bearing

AL-bronze

O ring

EPDM

Pin

SS420

Key

SS420

Packing gland

Carbon steel +epoxy

Connection flange

Carbon steel +epoxy

End cover

Carbon steel +epoxy

(Other Material are available on request)

Size: DN150 - DN3600; 6"-144"
Pressure: PN6-PN10-PN16-PN25-PN40
Coating: epoxy painting min. thickness 200micron.
Suitable medium: water, sea water and other weak corrosive fluid etc.
Suitable temperature:-10-120℃
