Tilting Disc Check Valve

  • Design standard: BS EN12334
  • Face to face length: EN558-1/ISO5752 series 14 (DIN3202 F4)
  • Size: DN100 – DN4000
  • Pressure rating: PN6- PN10-PN16-PN25-PN40

We're here to help:

Easy ways to get the answers you need.

share with :
  • Overview
  • Full Data

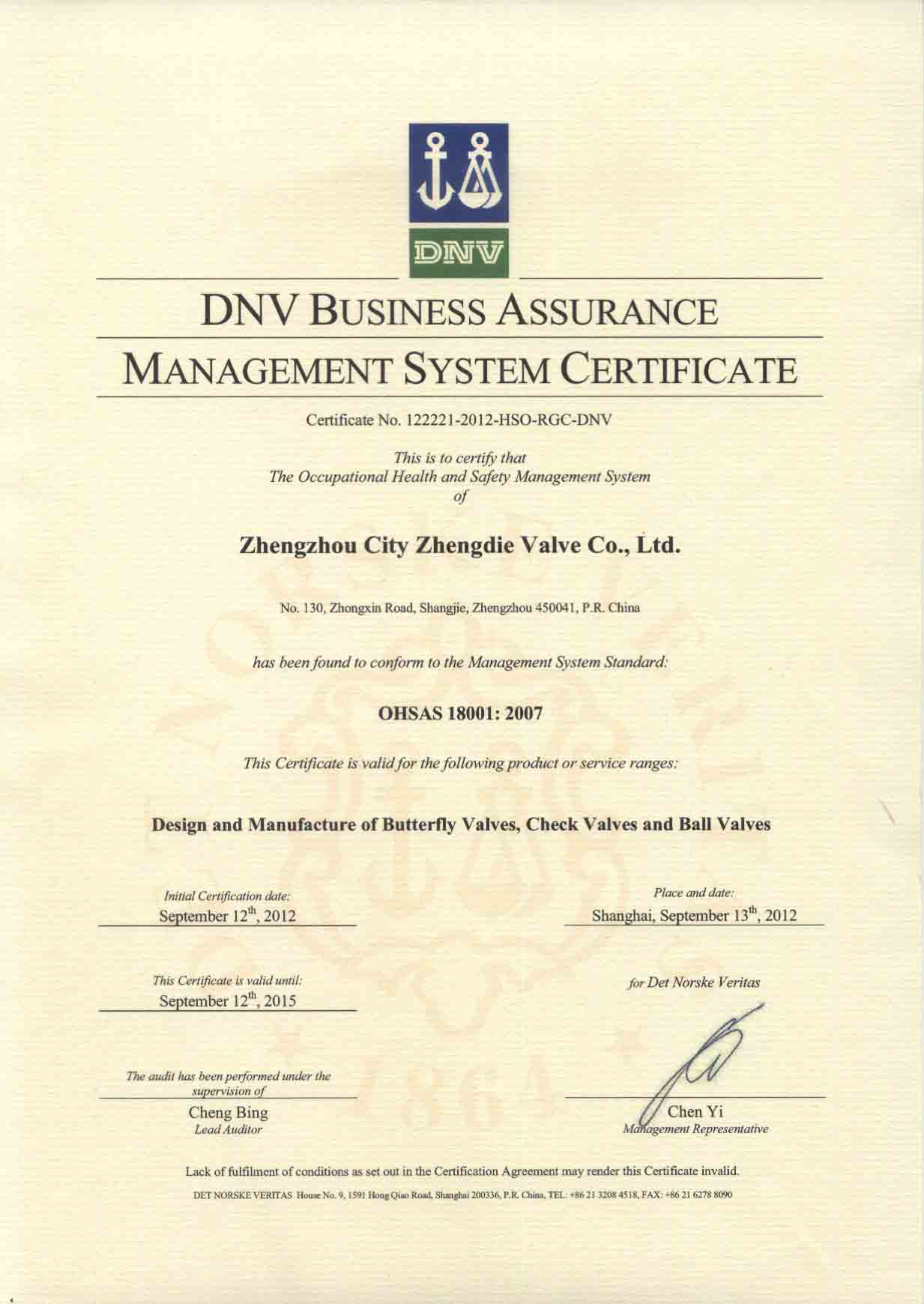

  • Certification
  • Inquiry
Tilting disc check valve, with counterweight and hydraulic damper in option, is designed as double eccentic double falnge, and is applied in the water industry, irrigation, municipal engineering, water conservancy project, drinking water engineering, and etc.
Design standard: BS EN12334
Face to face length : EN558-1/ISO5752 series 14 (DIN3202 F4)
Flange dimension and drilling : EN1092/ISO5752(DIN2501), or other as request
Size: DN100 – DN4000
Pressure rating:PN6- PN10-PN16-PN25-PN40


Overview
:
►1. Body
Large eccentric design disc provides large opening degree.
►2. Bearing system
Stainless Steel base with PTFE bearing helps the free operation without stuck.
►3. Disc
Streamlined low profile disc ensures the lower flow resistance
►4. Body sealing
Stainless steel welded and finished body seat ensures Reliable and durable performance.
►5 Flange
Flange and drilling to EN1092-2, face to face as per ISO5752 series 14
►6. shaft bearing
Multiple shaft O rings provide long life and reliable sealing performance, which is easy to be adjusted or replace
►7. disc seal ring
T profiled disc seal ring fixed by retainer ensures the reliable sealing performance in both direction, which is also easy to be adjusted or replaced without any special tools.

Name

Material

Body

GJS500-7/GJS400-15

Disc

GJS500-7/GJS400-15

Shaft

SS420/SS431

Body seat

SS304

Disc seal ring

EPDM

Retainer ring

Carbon steel +epoxy/SS304

Shaft bearing

SS304

O ring

EPDM

Pin

SS420

Self-lubricating bearing

Environment protection SS304 base

End cover

Carbon steel +epoxy

Counterweight

Cast iron

lever

Carbon steel welded

(Other Material are available on request)
Size: DN100-DN4000
Pressure: PN6-PN10-PN16-PN25-PN40
Coating: fusion bonded epoxy coating min. thickness 250 micron.
Suitable medium: water, and lower-corrosive liquid etc.
Suitable temperature:-10-120℃
